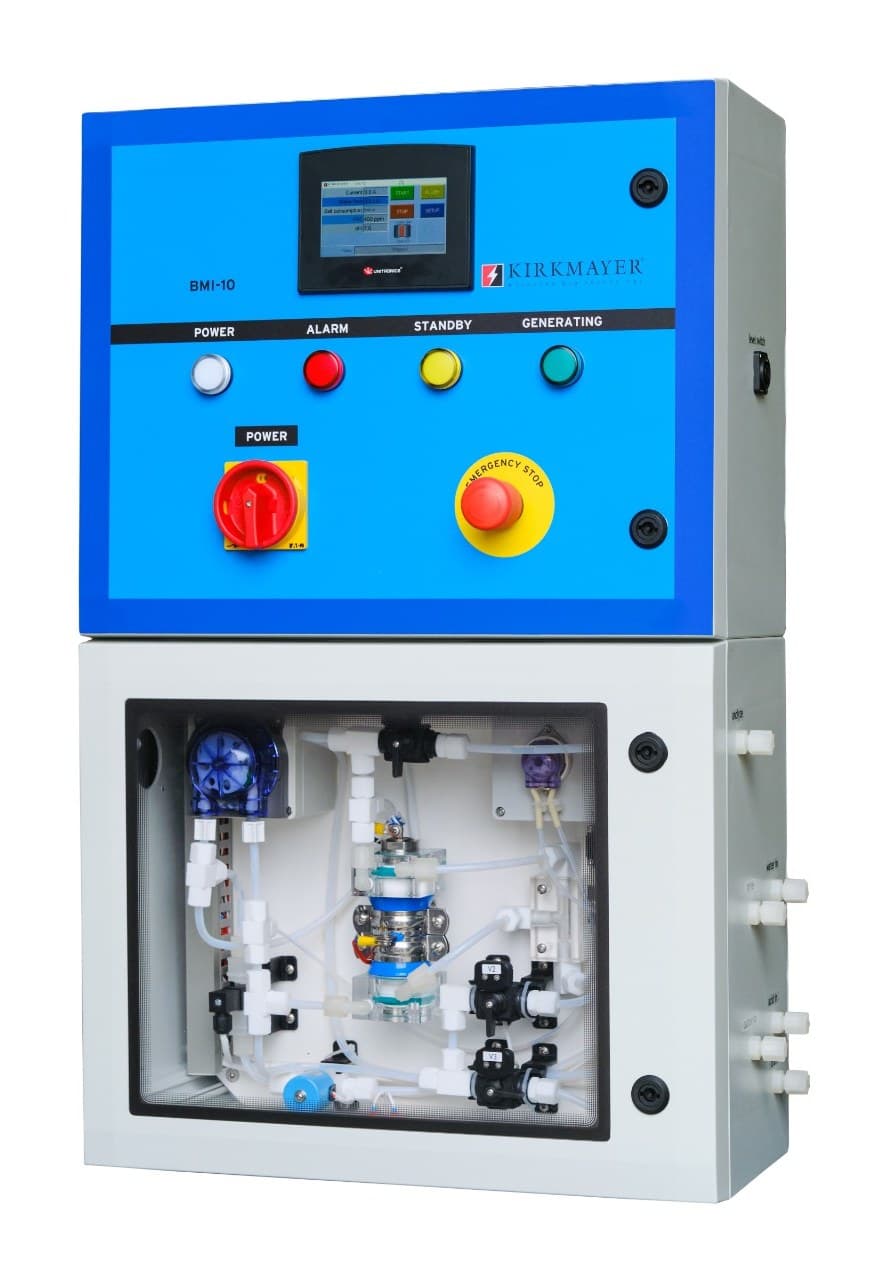

BMI Series
01Compact generators for small sites — farms, veterinary practices and localised disinfection.
Output5–30 L/h
HomeProducts
Products
ECA generators from 5 to 1,200 L/h.
Three series of on-site generators: compact BMI units for small sites, automated LAMI generators for continuous duty, and AMI for precision-controlled production.
- series
- 3
- generator models
- 23
- FAC concentration
- 100–2000ppm
Generator range
Three series, sized to the job
From spot treatment on a single farm to industrial bottling, Kirkmayer's cylindrical cell scales without losing efficiency.
- View BMI specifications
LAMI-130-750LAMI Series
02Automated generators for food production, livestock facilities and water treatment plants.
View LAMI specificationsOutput50–1,200 L/h

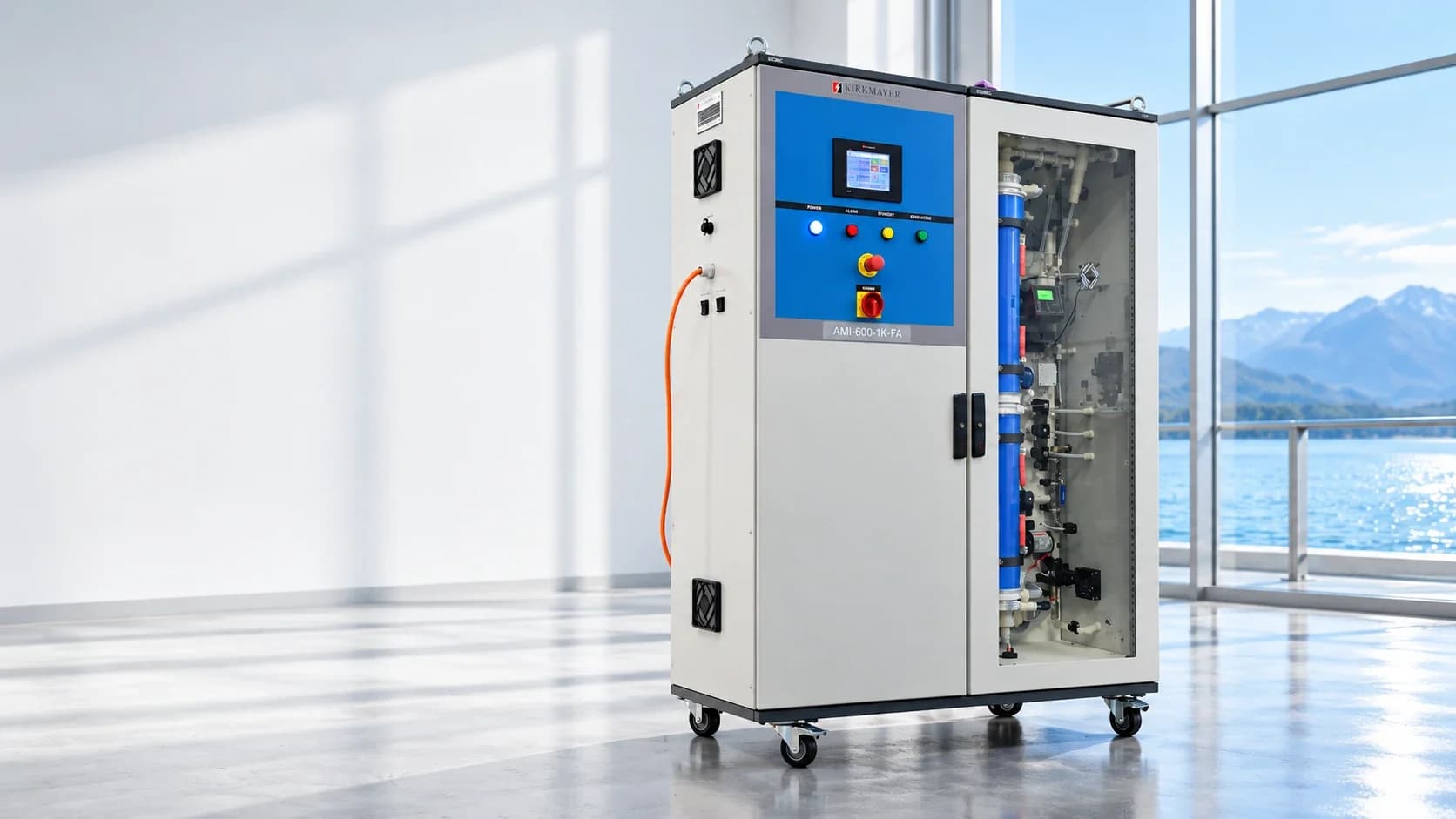

AMI-200-FAAMI Series
03The precision tier — acid sensing and automated valve control for bottling lines and municipal infrastructure.
View AMI specificationsOutput50–1,200 L/h
Choosing a series
Start from your site, not the catalogue.
Three questions narrow it down. Our engineers confirm the size against your water volume.
- 01BMI
A farm, clinic or small site?
Up to 30 L/h, wall-mounted, with manual or touch-screen control.
- 02LAMI
Continuous, unattended production?
50–1,200 L/h with PLC automation, safety interlocks and remote monitoring.
- 03AMI
Bottling, municipal or regulated?
The same range as LAMI, with acid sensing, micro-switch valves and optional pH/ORP probes.
Compare the range
Every model on one scale
Anolyte output of all 23 models, on a logarithmic scale. LAMI and AMI cover the same range — AMI adds an acid sensor and micro-switch valves.
- BMI Series3 × BMI
- LAMI Series10 × LAMI
- AMI Series10 × AMI
| 01BMI Series | 02LAMI Series | 03AMI Series | |
|---|---|---|---|
| Models | 3BMI-05 – BMI-030 | 10LAMI-050 – LAMI-1200 | 10AMI-050 – AMI-1200 |
| Anolyte output | 5–30 L/h | 50–1,200 L/h | 50–1,200 L/h |
| FAC concentration | 400 ppm | 400–500 ppm | 400 ppm |
| Power | 40 W – 220 W | 300 W – 6.8 kW | 300 W – 6.8 kW |
| Electrical supply | 110–230 VAC, 50/60 Hz100–230 VAC, 50/60 Hz | 100–230 VAC, 50/60 Hz230 VAC, 50/60 Hz400 VAC, 50/60 Hz, 3-phase | 100–230 VAC, 50/60 Hz230 VAC, 50/60 Hz400 VAC, 50/60 Hz, 3-phase |
| Control and sensing | Manual start/stop (BMI-05) or touch-screen PLC (BMI-010, BMI-030) | Touch-screen PLC, conductivity sensor, float level switches | Touch-screen PLC, conductivity and acid sensors, micro-switch valves |
| View BMI specifications | View LAMI specifications | View AMI specifications |
